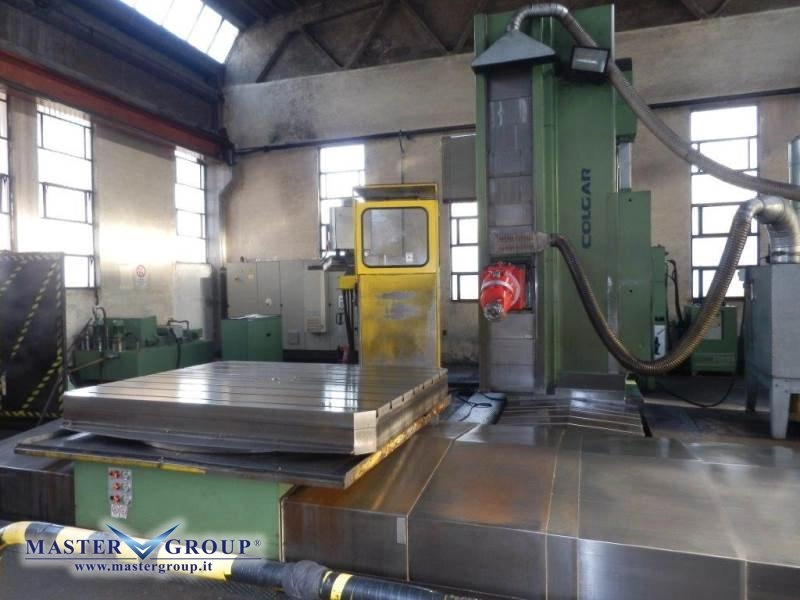

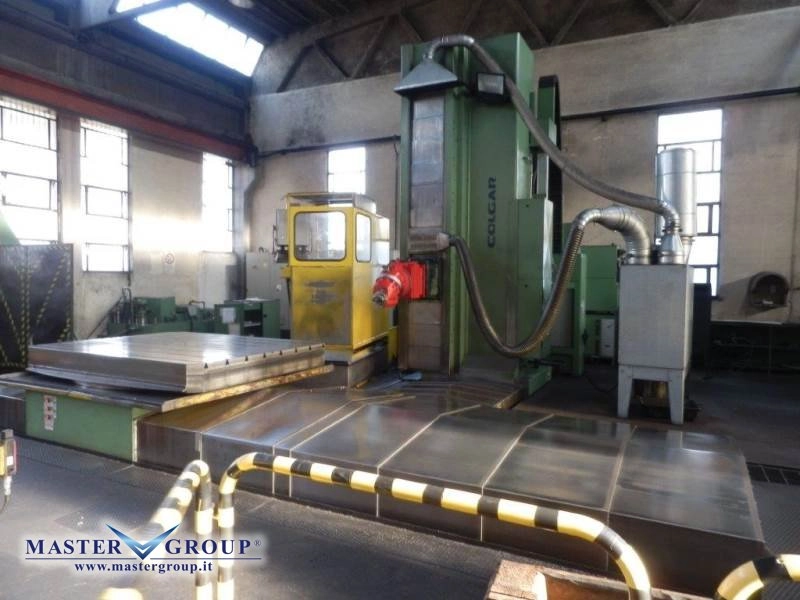

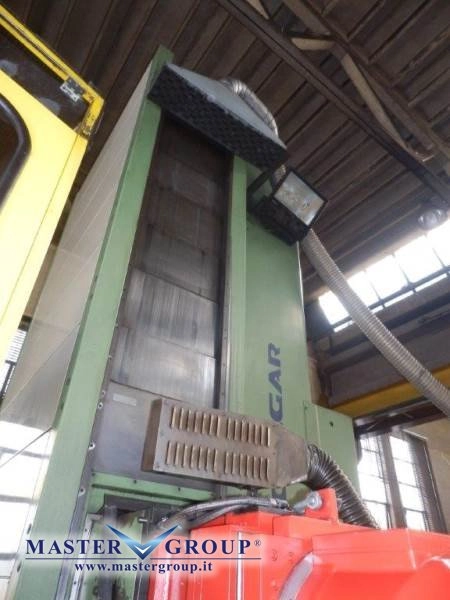

- USED - T-TYPE CNC BORING MACHINE WITH ROTARY AND SHIFTING TABLE
PROG 214 TR 15
- USED - T-TYPE CNC BORING MACHINE WITH ROTARY AND SHIFTING TABLE
PROG 214 TR 15
- USED - T-TYPE CNC BORING MACHINE WITH ROTARY AND SHIFTING TABLE
| YEAR | 2001 |
| CODE | 14U3025 |
| LONGITUDINAL TRAVEL | 4000 mm |
| TRANSVERSAL TRAVEL | 1650 mm |
| VERTICAL TRAVEL | 2500 mm |
| QUILL TRAVEL | 700 mm |
| QUILL DIAMETER | 140 mm |

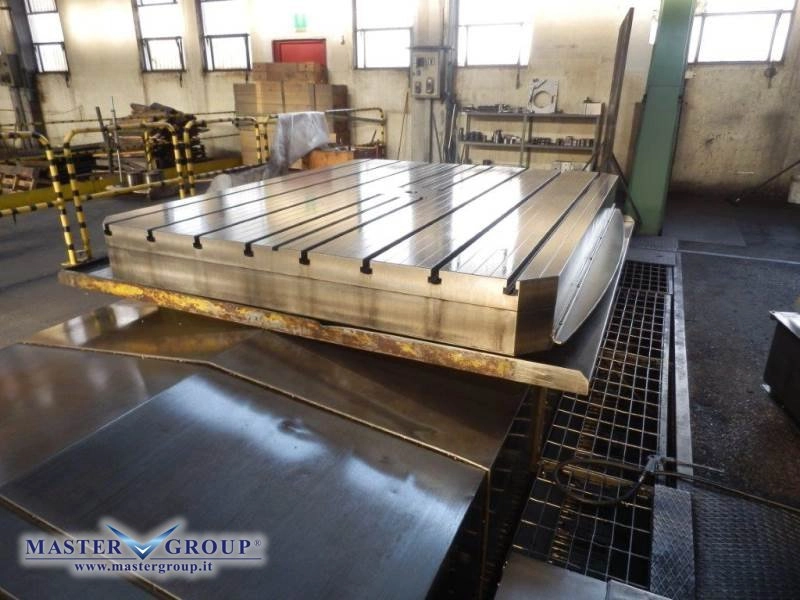

| TABLE SIZE | 2500 x 2000 |
| MAX ADMITTED LOAD | 30000 Kg |
| SPINDLE | 2000 rpm; 37-52 kW |

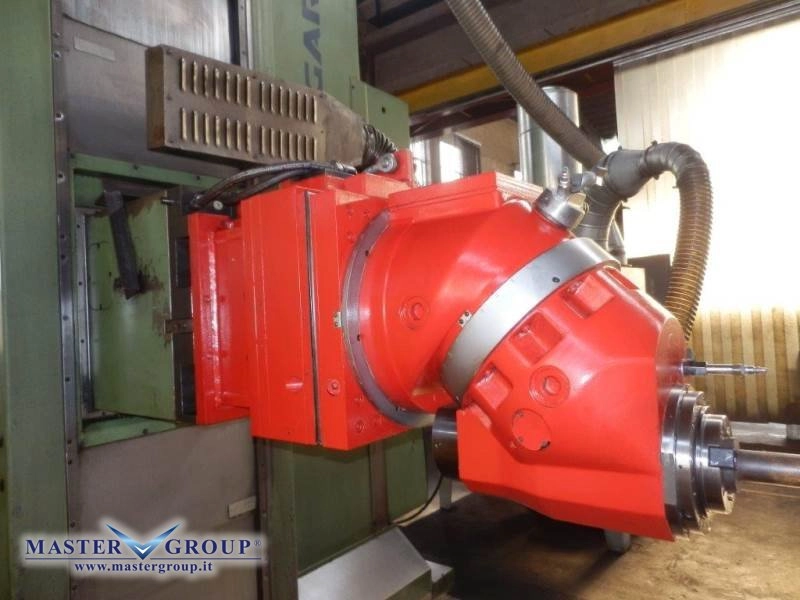

| HEAD | AUTOMATIC ; A 2,5°- B 2,5° ; ISO 50 ; 2000 rpm |

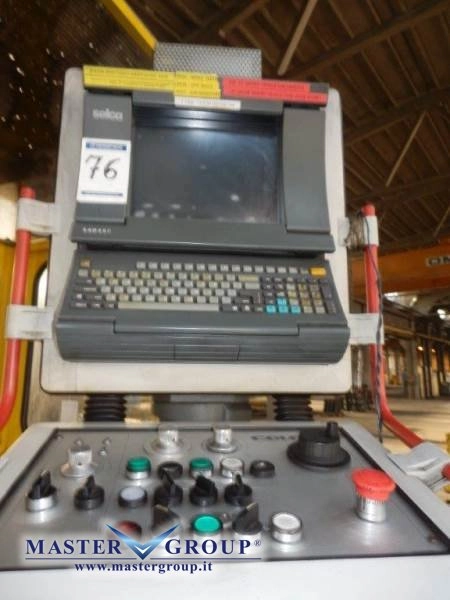

| CONTROL UNIT | SELCA S4045P |
| ACCESSORIES | SWARF CONVEYOR ; PORTABLE HANDWHEEL ; HIGH PRESSURE COOLANT |
| PRICE |
0
To be defined
EUR
SoldOut
|
Video Company
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
