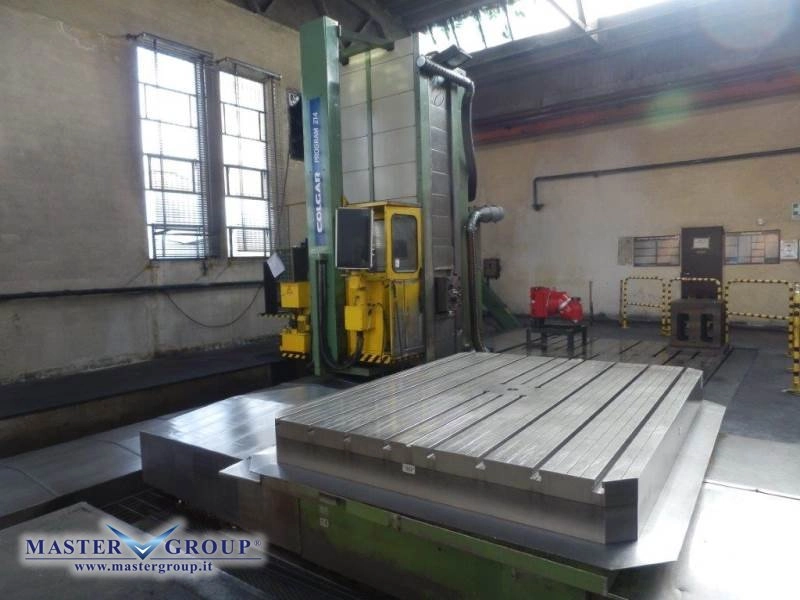

-USED- TRAVELLING COLUMN MILLING/BORING MACHINE WITH ROTARY AND SHIFTING TABLE and AUTOMATIC A/B-AXIS HEAD

MASTER GROUP S.R.L. - Vocabolo Felceto 15, Matelica (MC) - P.IVA 01584670432 - e-mail: info@mastergroup.it - Tel. +39 0737.86513 - Fax +39 0737.782055

COLGAR

PROGRAM 214

-USED- TRAVELLING COLUMN MILLING/BORING MACHINE WITH ROTARY AND SHIFTING TABLE and AUTOMATIC A/B-AXIS HEAD


YEAR: 1999
CODE: 14U3024
LONGITUDINAL TRAVEL8500 mm
TRANSVERSAL TRAVEL1000 mm
VERTICAL TRAVEL2750 mm
QUILL TRAVEL700 mm
QUILL DIAMETER140 mm

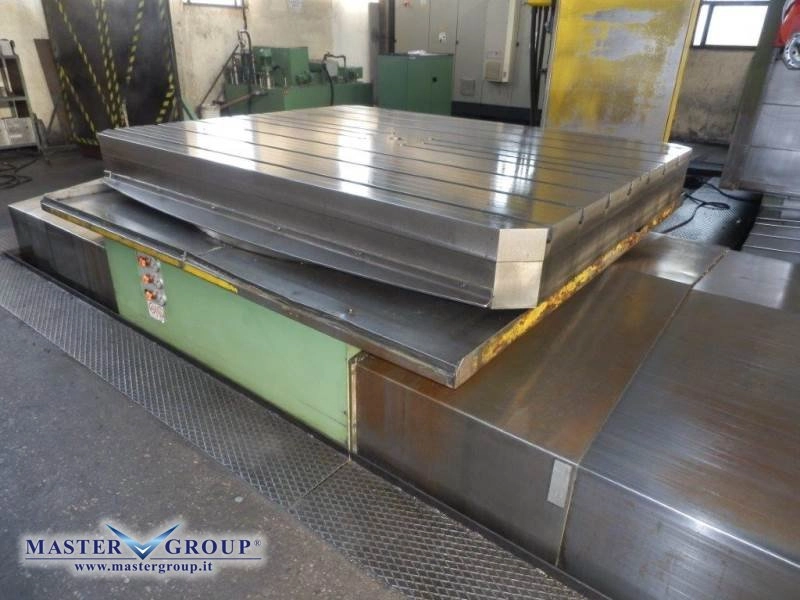

TABLE SIZE2500 x 2000
MAX ADMITTED LOAD30000 Kg
SPINDLE 2000 rpm; 37 kW; ISO 50

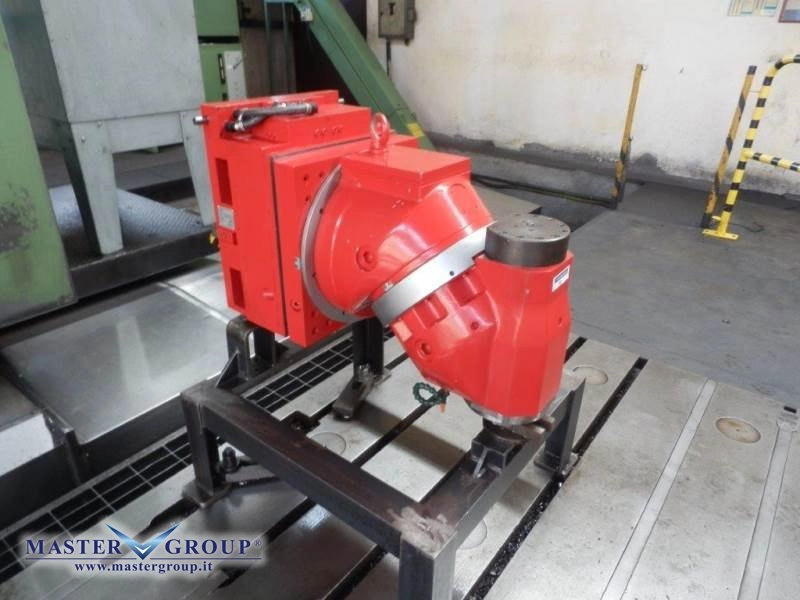

HEADA/B AXIS AUTOMATIC ; ISO 50 ; 2000 rpm
TRANSVERSAL TRAVEL OF THE TABLE1500 mm

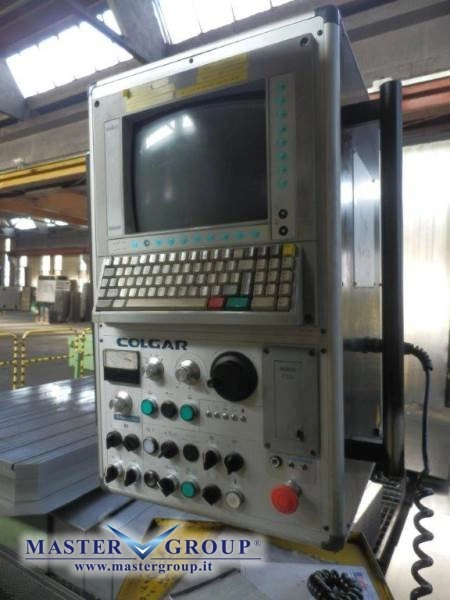

CONTROL UNITSELCA S3045P

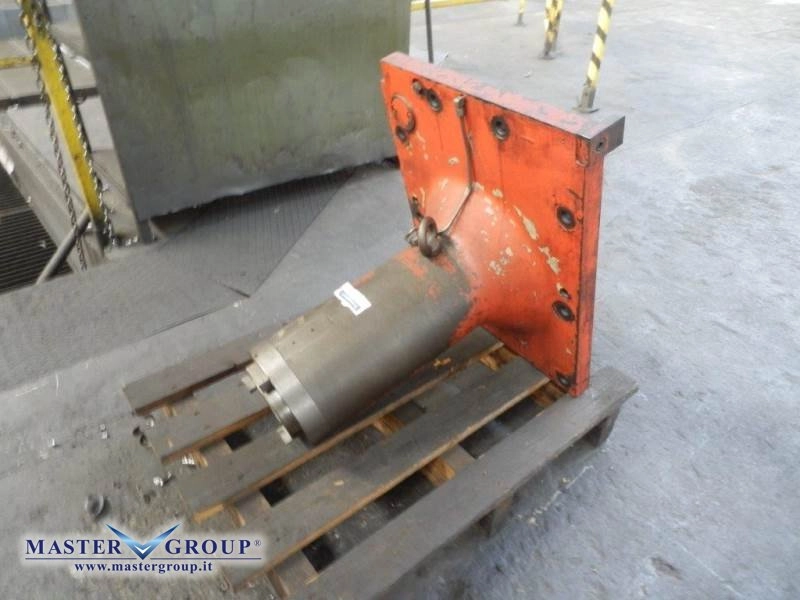

ACCESSORIES: HIGH PRESSURE COOLANT; SWARF CONVEYOR; SPINDLE EXTENSION
PRICE: On demand
