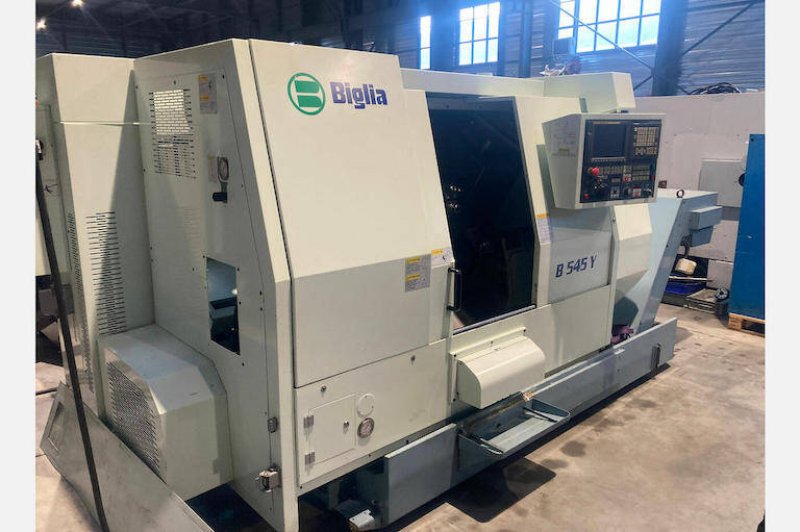

- USED - 4-AXIS CNC LATHE
B 545 Y
- USED - 4-AXIS CNC LATHE
B 545 Y
- USED - 4-AXIS CNC LATHE
| YEAR | 2007 |
| CODE | 26U9454 |
| MAX ROTATING DIAMETER | 580 mm |
| MAX TURNING LENGTH | 560 mm |
| MAX TURNING DIAMETER | 220 mm |
| BAR CAPACITY | 45 mm |

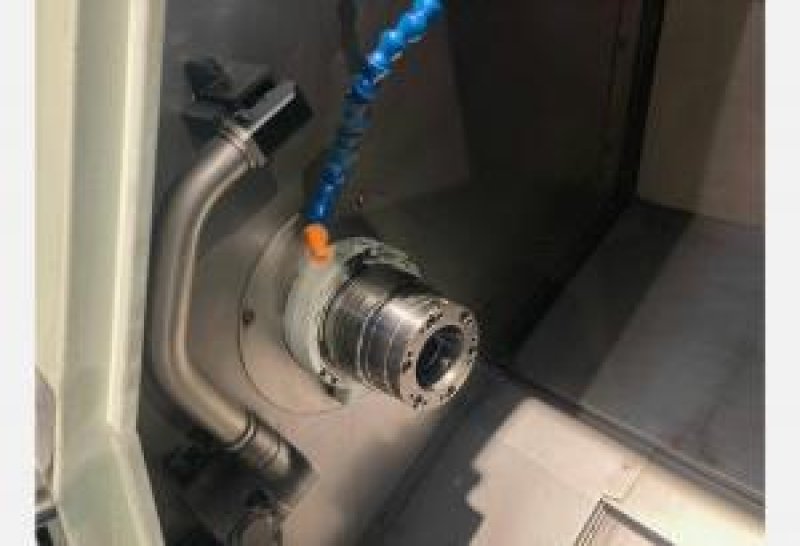

| SPINDLE | 5000 rpm; 11-15 kW; 76 - 108 Nm; ASA 5" |
| X-AXIS TRAVEL | 170 mm |
| Y-AXIS TRAVEL | 55/-50 mm |
| Z-AXIS TRAVEL | 560 mm |
| RAPID FEEDS X-Y-Z | 20 - 6 - 24 m/min |

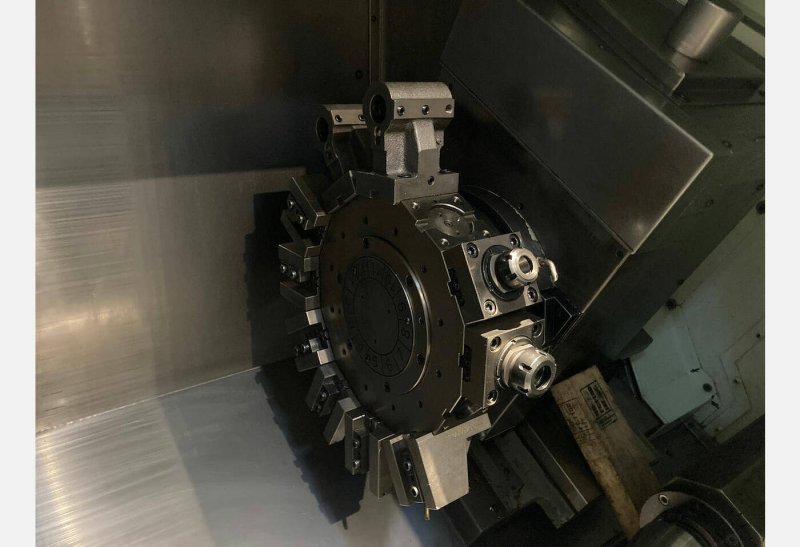

| DRIVEN TURRET HEAD | 12 POS; 3000 rpm; 3,7 kW |

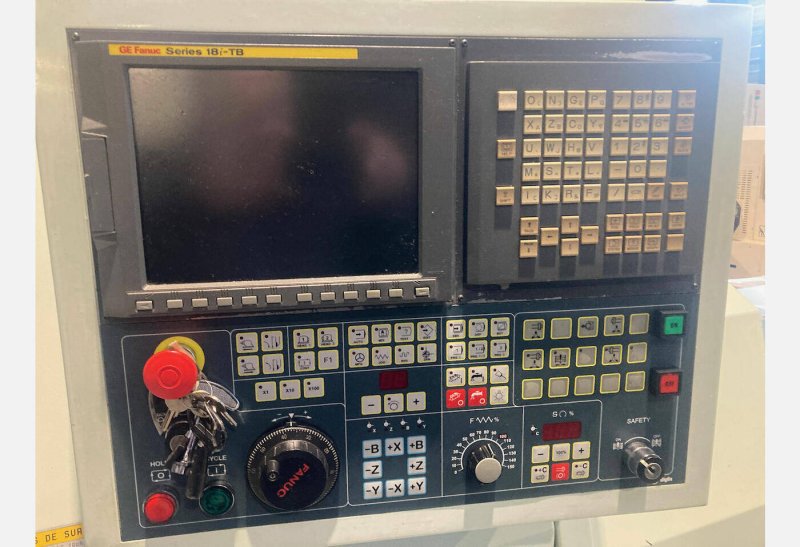

| CONTROL UNIT | FANUC 18i-TB |
| WEIGHT | 4900 Kg |
| OVERALL DIMENSIONS | 4200 x 2000 x 1900 mm |
| ACCESSORIES | PARTS CATCHER ; SWARF CONVEYOR ; TOOL SETTER |
| PRICE |
0
To be defined
EUR
InStock
|
Video Company
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
