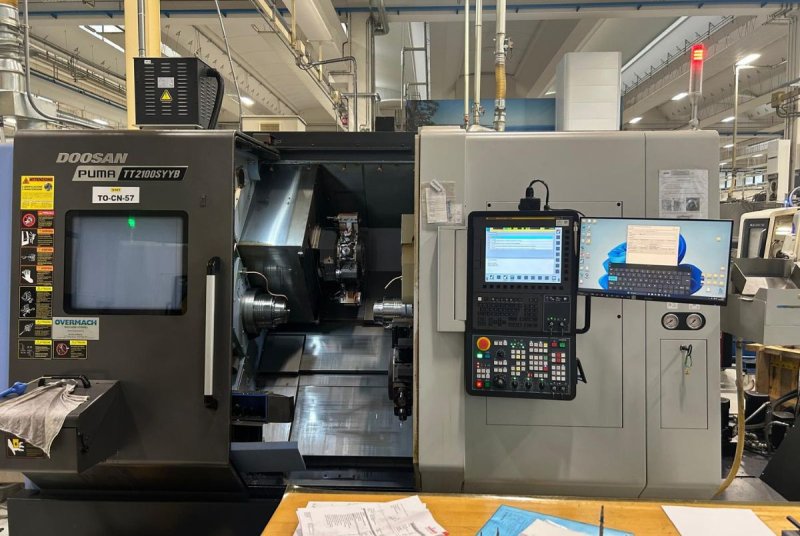

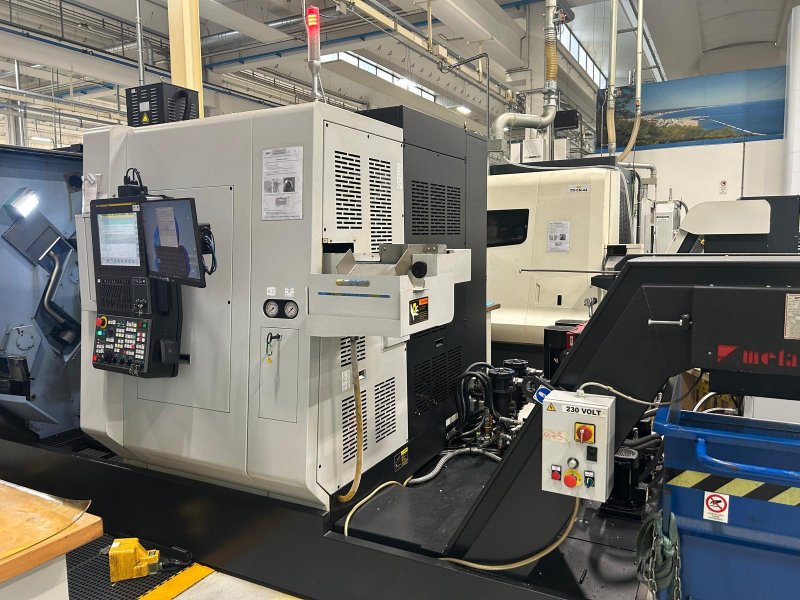

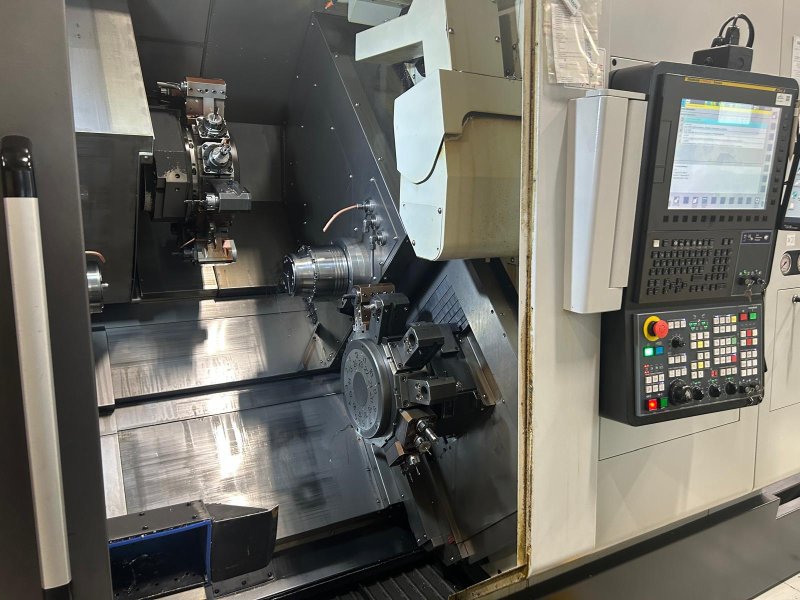

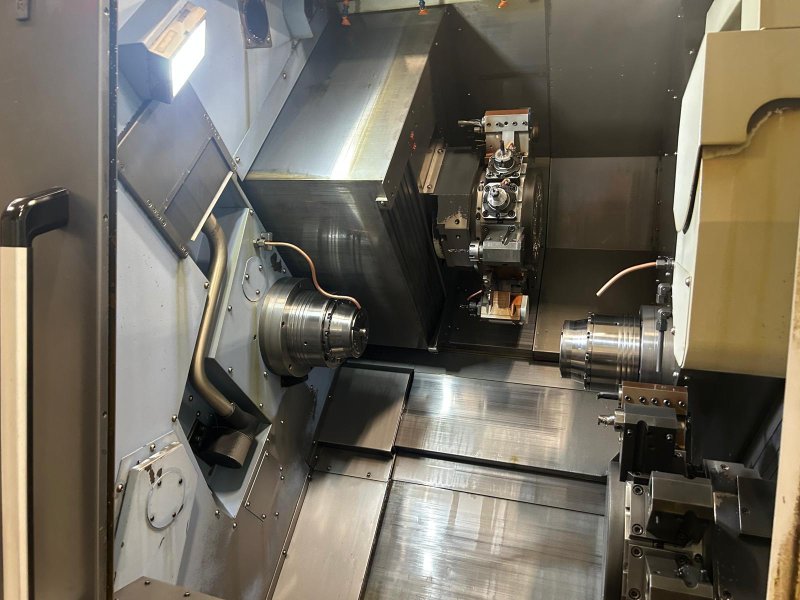

- USED - 8-AXIS TWIN-SPINDLE CNC LATHE WITH DOUBLE TURRET HEAD
PUMA TT2100SYYB
- USED - 8-AXIS TWIN-SPINDLE CNC LATHE WITH DOUBLE TURRET HEAD
PUMA TT2100SYYB
- USED - 8-AXIS TWIN-SPINDLE CNC LATHE WITH DOUBLE TURRET HEAD
| YEAR | 2021 |
| CODE | 26U9469 |
| MAX ROTATING DIAMETER | 230 mm |
| MAX TURNING LENGTH | 230x2 mm |
| MAX TURNING DIAMETER | 230 - 230 mm |
| BAR CAPACITY | 81 mm |
| SPINDLE | 3500 rpm; 18,5-22 kW; 244 Nm; ASA A2-8 |
| COUNTER SPINDLE | 5000 rpm; 15-18,5 kW; 223 Nm; ASA A2-6 |
| X1-AXIS TRAVEL | 165 mm |
| X2-AXIS TRAVEL | 165 mm |
| Y1-AXIS TRAVEL | ±50 mm |
| Y2-AXIS TRAVEL | ±50 mm |
| Z1-AXIS TRAVEL | 700 mm |
| Z2-AXIS TRAVEL | 700 mm |
| B-AXIS TRAVEL | 730 mm |
| RAPID FEEDS X-Y-Z | 30 - 15 - 40 m/min |
| DRIVEN TURRET HEAD | BMT55P ; 24 + 24 POS; 5000 rpm; 7,5 kW |
| HIGH PRESSURE COOLANT | 35 Bar |
| CONTROL UNIT | DOOSAN FANUC i-series |
| WEIGHT | 9600 Kg |
| OVERALL DIMENSIONS | 3880 x 2360 x 2250 mm |
| ACCESSORIES | PARTS CATCHER ; SWARF CONVEYOR ; PIECE CONVEYOR ; TOOL SETTER ; LINEAR SCALES |
| NOTE | ORE DI LAVORO MANDRINO 9800, CONTROMANDRINO 3000 |
| PRICE |
0
To be defined
EUR
InStock
|
Video Machine
See the machine in operation directly in our video and subscribe to our YouTube channel to stay up to date on upcoming machines
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
