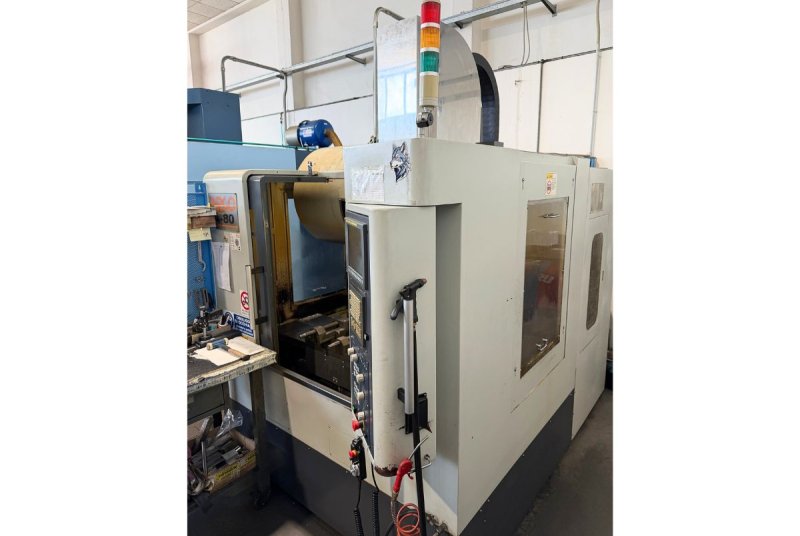

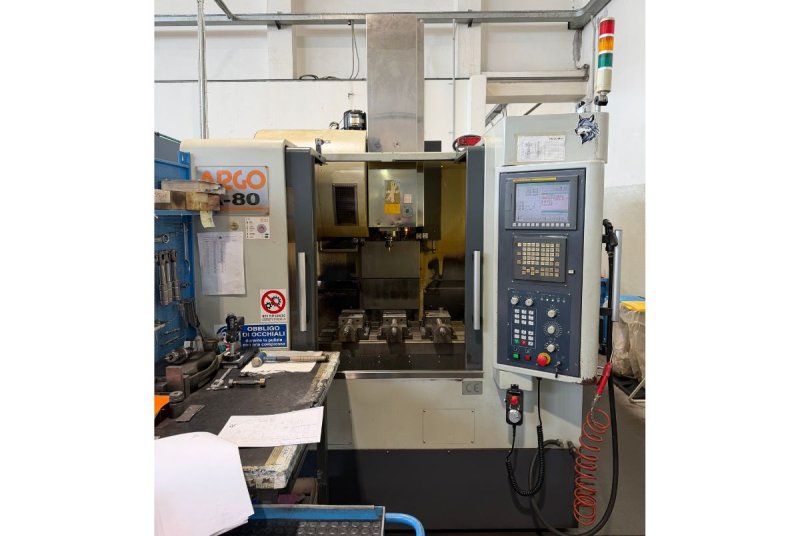

- USED - 3-AXIS VERTICAL MACHINING CENTRE
A-80
- USED - 3-AXIS VERTICAL MACHINING CENTRE
A-80
- USED - 3-AXIS VERTICAL MACHINING CENTRE
| YEAR | 2003 |
| CODE | 26U9447 |
| X-AXIS TRAVEL | 800 mm |
| Y-AXIS TRAVEL | 530 mm |
| Z-AXIS TRAVEL | 530 mm |
| DISTANCE SPINDLE NOSE-TABLE | 70-600 mm |
| Rapid feedrate X - Y - Z | 48 m/min |
| SPINDLE | 120 - 12000 rpm; 5,5-7,5 kW; ISO 40 |
| TABLE SIZE | 900 x 520 mm |
| MAX ADMITTED LOAD | 200 Kg |
| TOOL MAGAZINE | BASKET-TYPE ; 25 POS |
| MAX TOOL DIAMETER | 63,5 (80) mm |
| MAX TOOL LENGHT | 250 mm |
| MAX TOOL WEIGHT | 4 Kg |

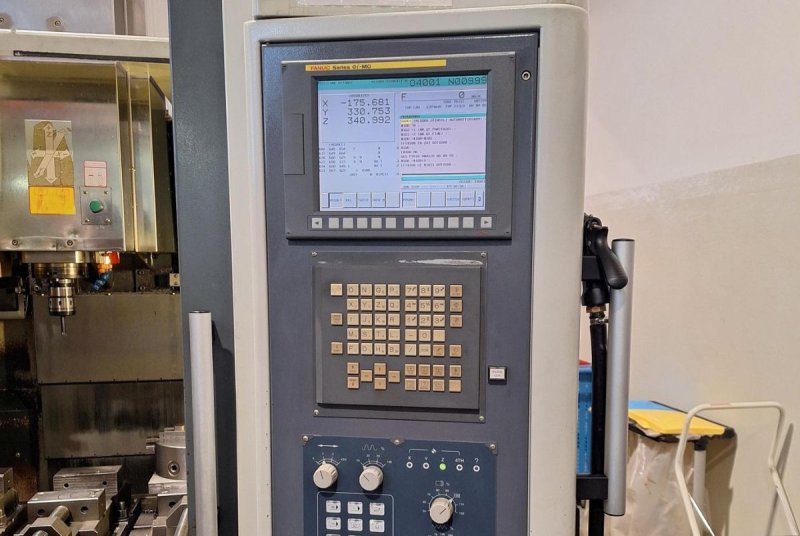

| CONTROL UNIT | FANUC 0i-MC |
| WEIGHT | 5500 Kg |
| OVERALL DIMENSIONS | 3250 x 1900 x 2700 mm |
| ACCESSORIES | SWARF CONVEYOR ; PORTABLE HANDWHEEL |
| PRICE |
0
To be defined
EUR
InStock
|
Video Company
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
