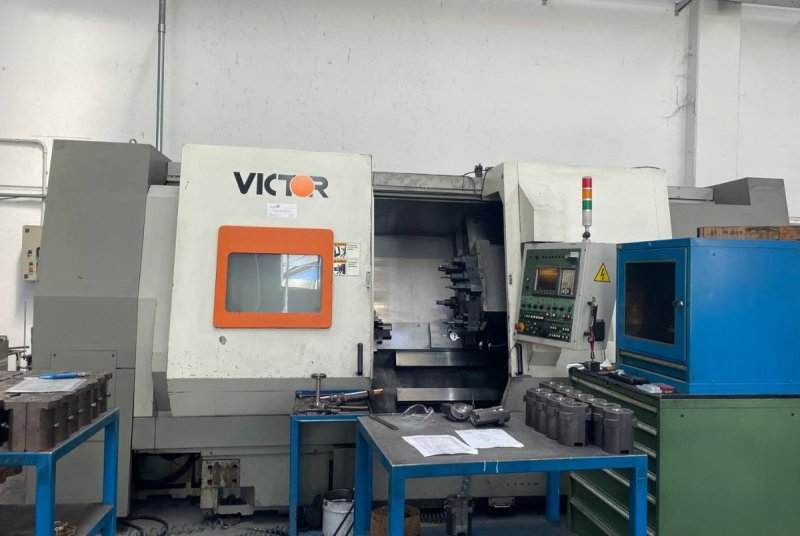

- USED - 3-AXIS CNC LATHE
VT-46/165CV
- USED - 3-AXIS CNC LATHE
VT-46/165CV
- USED - 3-AXIS CNC LATHE
| YEAR | 2004 |
| CODE | 25U9376 |
| MAX ROTATING DIAMETER | 730 mm |
| MAX TURNING LENGTH | 1750 mm |
| MAX TURNING DIAMETER | 528 mm |
| BAR CAPACITY | 110 mm |
| SPINDLE | 1500 rpm; 30 - 37 kW; ASA A2-11 ; 530 mm |
| X-AXIS TRAVEL | 156 + 251 mm |
| Z-AXIS TRAVEL | 1650 mm |
| GEAR BOX | 4-STEPS |
| RAPID FEEDS X-Z | 12 - 15 m/min |

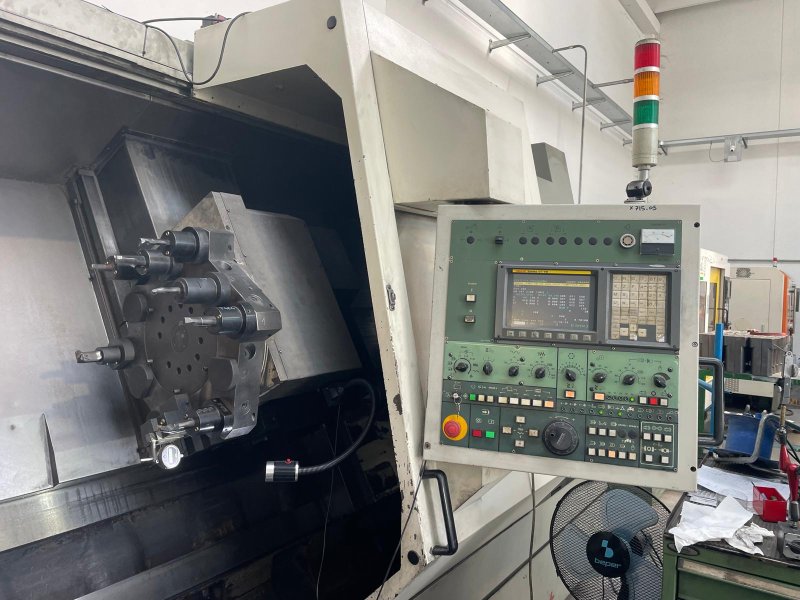

| DRIVEN TURRET HEAD | 12 (6 DRIVEN TOOLS) POS; 2500 rpm; 5,2 kW |
| HIGH PRESSURE COOLANT | 4 BAR |
| CONTROL UNIT | FANUC 0i-TB |
| WEIGHT | 13500 Kg |
| OVERALL DIMENSIONS | 6210 x 2980 x 2515 mm |

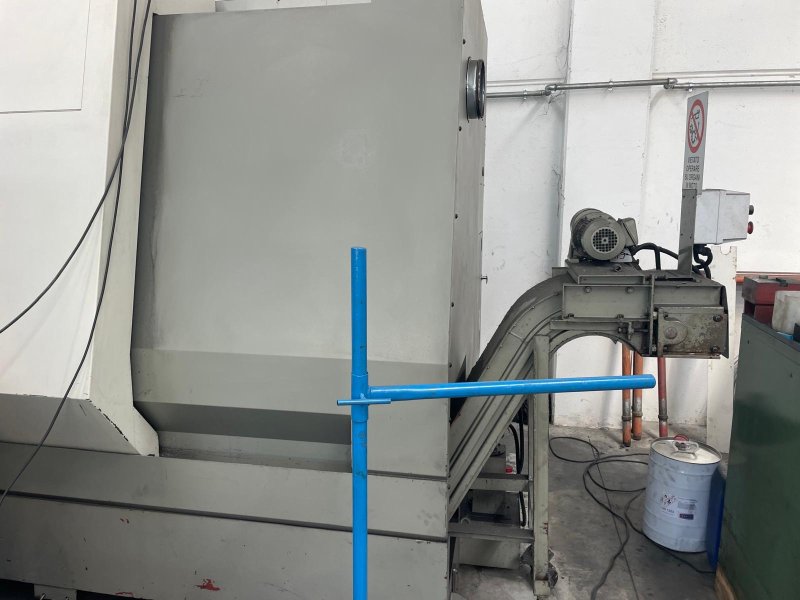

| ACCESSORIES | SWARF CONVEYOR |
| PRICE |
0
To be defined
EUR
InStock
|
Video Machine
See the machine in operation directly in our video and subscribe to our YouTube channel to stay up to date on upcoming machines
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
