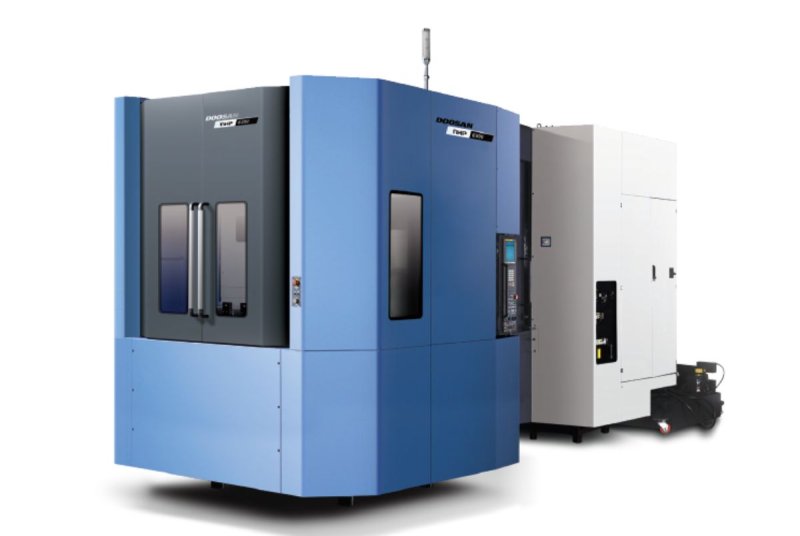

- USED - 4-AXIS HORIZONTAL MACHINING CENTRE WITH PALLET CHANGER
NHP 6300
- USED - 4-AXIS HORIZONTAL MACHINING CENTRE WITH PALLET CHANGER
NHP 6300
- USED - 4-AXIS HORIZONTAL MACHINING CENTRE WITH PALLET CHANGER
| YEAR | 2020 |
| CODE | 25U9357 |
| X-AXIS TRAVEL | 1050 mm |
| Y-AXIS TRAVEL | 900 mm |
| Z-AXIS TRAVEL | 1000 mm |
| DISTANCE SPINDLE NOSE-TABLE | 100 - 1100 mm |
| RAPID FEEDS X-Y-Z | 60 m/min |
| SPINDLE | 10000 rpm; 25-45 kW; 600 Nm; ISO 50 - BT |
| PALLET | N.2 ; CONTINUOUS ; 630x630 mm |
| MAX ADMITTED LOAD | 1500 Kg |
| MAX MACHINABLE PIECE DIMENSIONS | ø1050 x 1350 mm |
| TOOL MAGAZINE | CHAIN-TYPE ; 90 POS |
| CONTROL UNIT | FANUC 31i |
| WORKING HOURS | 3300 |
| WEIGHT | 18000 Kg |
| OVERALL DIMENSIONS | 6520 x 3930 x 3495 mm |
| ACCESSORIES | SWARF CONVEYOR ; TOOL SETTER |
| PRICE |
0
To be defined
EUR
InStock
|
Video Company
All the mentioned technical data are merely intended to describe the item, they are subject to change without any notice and refer to the standard conditions of a new good. A used good might not have the same figures as the new one.
